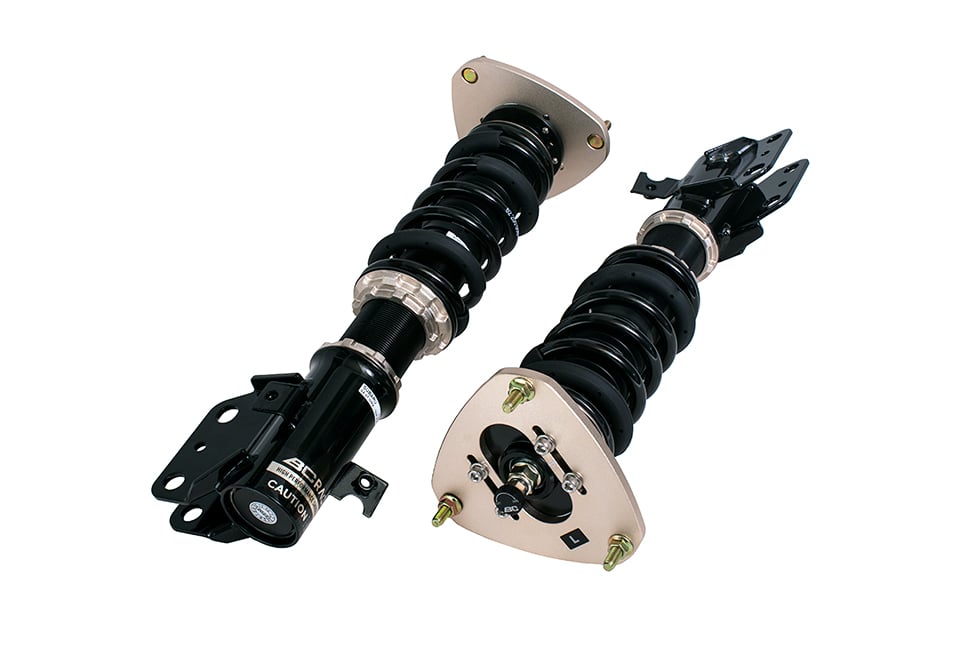

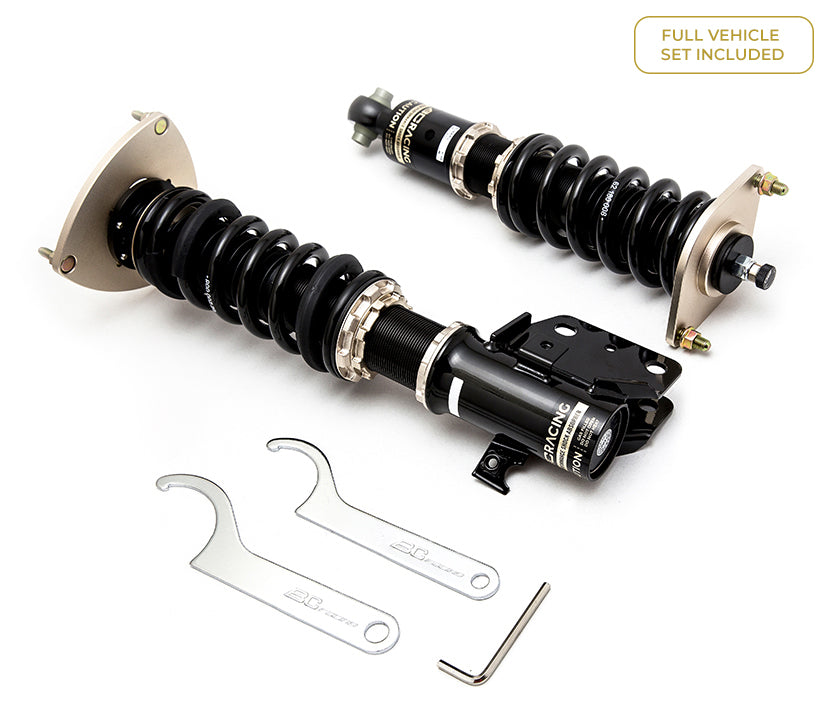

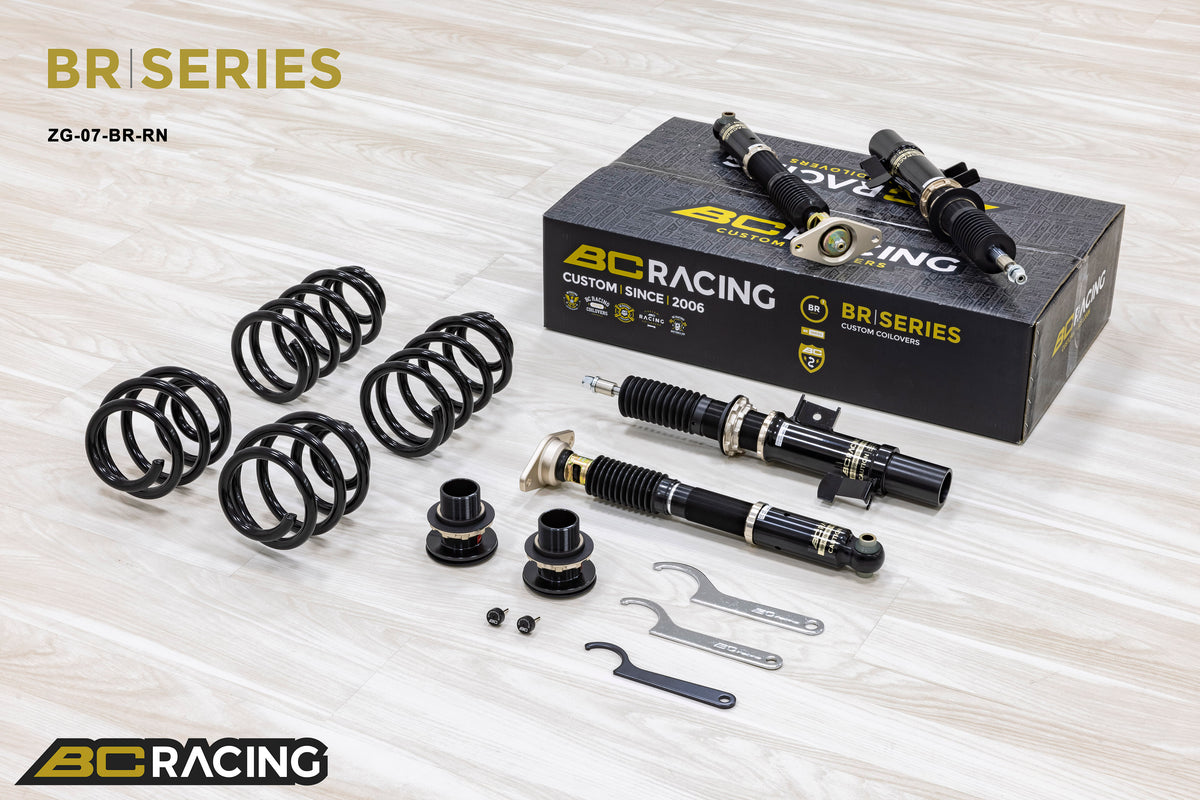

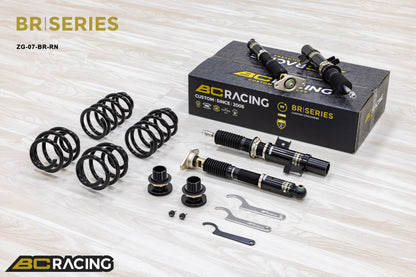

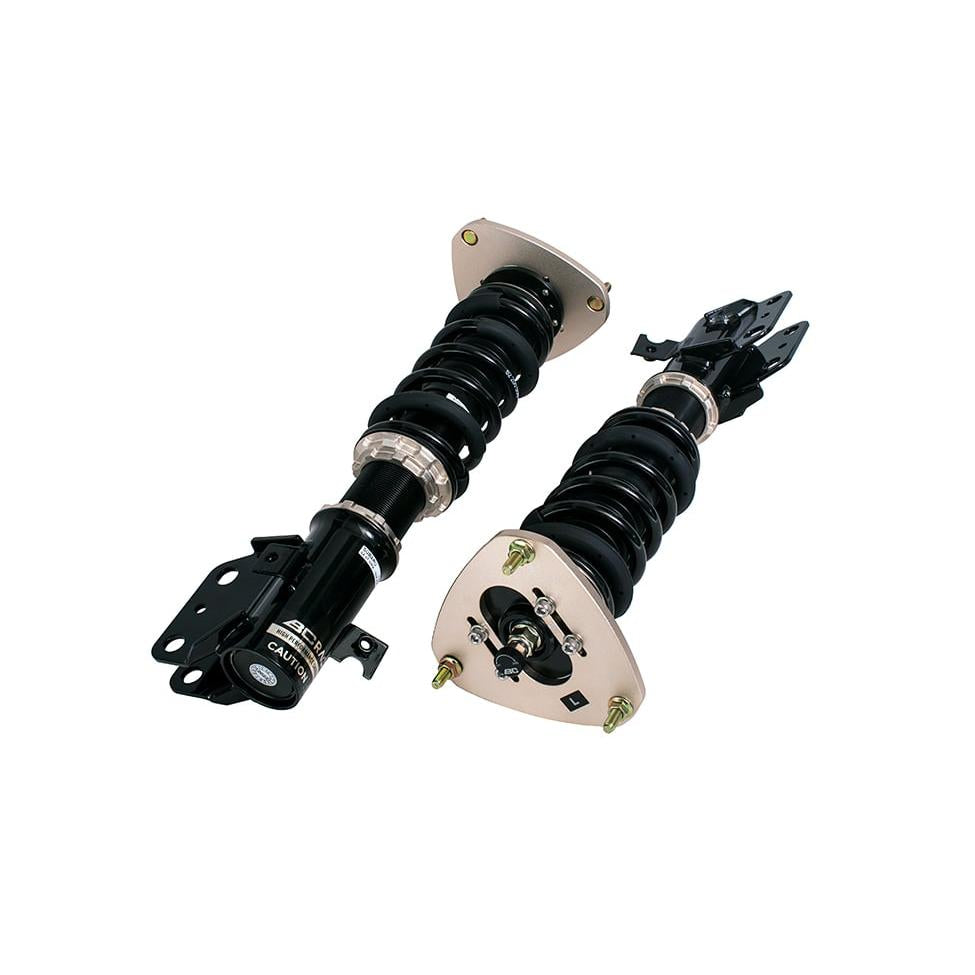

Volvo V70 Mk3 (2007–2018) BC Racing BR Series Coilovers – Height & Damping Adjustable

Sharpen the road manners of your Volvo V70 Mk3 with BC Racing BR Series coilovers — BC’s fast-road all-rounder with independent ride-height adjustment and 30-way damping on all four corners.

Built around a large 46 mm piston in a 53 mm monotube damper body for greater oil capacity and more consistent damping as temperatures rise, the BR kit is the setup BC recommend when you want a clear step up in body control without giving up everyday civility. Ride height is set on the threaded bottom mount (not by winding spring preload), so you keep full damper travel across the height range. Springs are SAE9254 cold-wound steel; dampers are nitrogen-pressurised and rebuildable, with a tapered / patented concave lower locking collar to help keep the bottom mount secure.

Important — choose the correct self-levelling option. Volvo Y20 cars were supplied both with and without OEM rear self-levelling suspension. These are different BC Racing kits and are not interchangeable.

• Without OEM self-levelling → manufacturer code ZG-07-BR-RN
• With OEM self-levelling → manufacturer code ZG-20-BR-RN

Confirm which system your car has (or send us the registration) before ordering. Ordering the wrong variant will not fit correctly.

Recommended factory rates for this application are 7 kg/mm front / 6.5 kg/mm rear. Custom spring rates are available. The RN configuration uses OEM-style mounting (no separate front top mount supplied; rubber / OEM-compatible rear arrangement) for a straightforward bolt-on install — no chassis cutting required for the recommended RN kit.

Shared Y20 platform applications also include related S60 and V60 models where BC list the same kit codes; always match drivetrain, years and self-levelling status.

Key Features / Selling Points

• BC Racing BR Series — fast-road / light track balance of control and comfort
• Two fitment options: with or without OEM rear self-levelling (ZG-20 vs ZG-07)
• Independent ride-height adjustment via threaded bottom mount (full damper travel retained)
• 30-way simultaneous rebound and compression damping adjustment
• Large 46 mm piston / 53 mm damper body for higher oil capacity
• Monotube, nitrogen-pressurised dampers
• Recommended springs 7 / 6.5 kg/mm (custom rates available)
• Bearing-mounted upper spring platform; dust boots; corrosion-protected hardware
• Patented concave / tapered lower locking collar
• Rebuildable dampers with spare parts support
• 1-year manufacturer warranty (BC Racing UK)

Vehicle Fitment

• Volvo V70 Mk3 / Y20 FWD — 2007–2018 (per BC Racing UK)
• Related Y20 applications listed under the same kit family: Volvo S60 and Volvo V60 (07–18) — confirm exact match
• Select with or without OEM rear self-levelling to match the car

Important Fitment Restriction You must order the correct self-levelling variant:

• ZG-07-BR-RN — without OEM self-levelling
• ZG-20-BR-RN — with OEM self-levelling

BC Racing UK lists these kits for FWD Y20 V70. Do not assume AWD or XC70 fitment. RA/DA pillowball configurations that require cutting the front upper mount are available separately — this listing is for the recommended RN bolt-on style. A professional four-wheel alignment after fitment is essential. Inform your insurer of the modification.

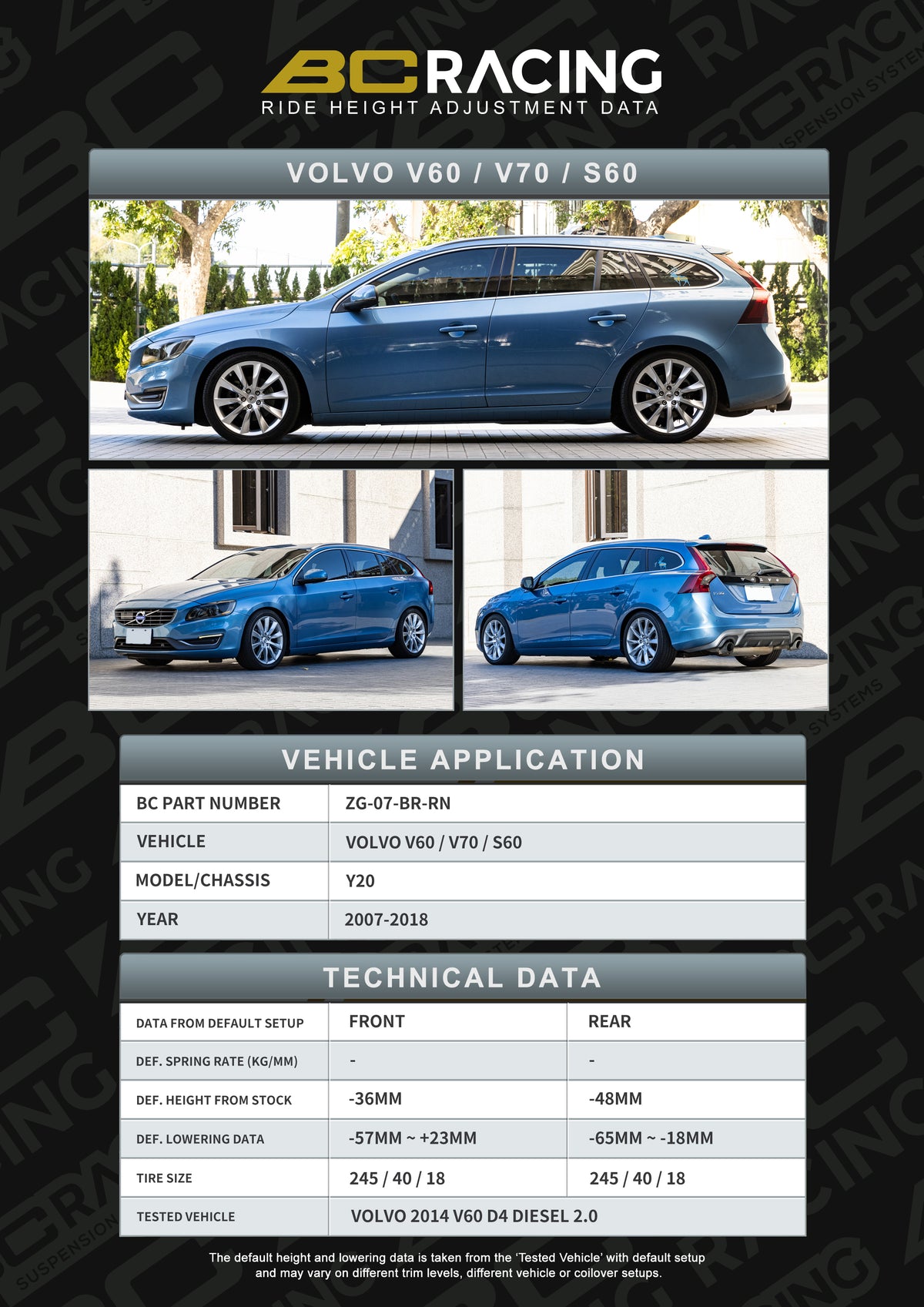

Technical Specification

• Manufacturer: BC Racing
• Series: BR Series (linear valving / fast road)
• Chassis: Volvo Y20
• Recommended kit (no SL): ZG-07-BR-RN
• Recommended kit (with SL): ZG-20-BR-RN
• Coilover type: RN (OEM-style mounts; no chassis cutting)
• Default spring rates: 7 kg/mm front / 6.5 kg/mm rear
• Damping: 30-way combined rebound + compression
• Damper design: Monotube; 46 mm piston / 53 mm body
• Height adjustment: Threaded bottom mount (independent of preload)
• Springs: SAE9254 cold-wound
• Warranty: 1 year manufacturer (BC Racing UK)
• Guide UK RRP (BC Racing UK): ~£1,049 incl. VAT (confirm at order)

Recommended For

• V70 Mk3 owners wanting adjustable height and damping for fast road use
• Drivers who want BR’s comfort/performance balance rather than DS digressive track bias
• Cars that need a clear self-levelling vs non–self-levelling choice at checkout
• Builds that may want custom spring rates or a future damper rebuild

Installation Note Professional installation strongly recommended. Verify self-levelling status before ordering. Set ride height on level ground with typical load, settle the suspension, then book a four-wheel alignment. Start damping adjusters mid-range and tune from there.
