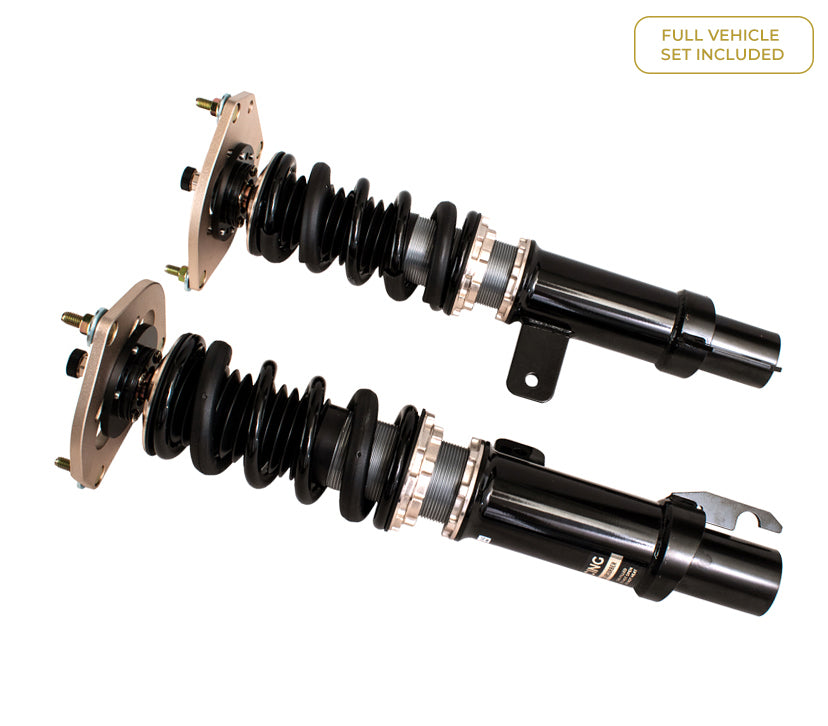

Volvo V70 Mk3 (2007–2018) BC Racing DS Series Coilovers – Digressive Track-Biased

Take the Volvo V70 Mk3 a step further toward track and fast-road aggression with BC Racing DS Series coilovers — digressive-valved monotube dampers with independent ride-height adjustment and 30-way damping.

Where the BR Series uses a conventional linear damping curve, the DS Series adds a digressive piston: higher damping force at low shaft speeds to control roll, pitch and weight transfer, with a softer high-speed response so the wheel can move over kerbs and rough surfaces without shocking the shell. Damper bodies are satin chrome finished. Ride height is set on the threaded bottom mount so spring preload and ride height stay separate, and the dampers remain rebuildable with spare-parts support.

Important — choose the correct self-levelling option. Y20 Volvos were built with or without OEM rear self-levelling. BC list separate kits; they are not interchangeable.

• Without OEM self-levelling → manufacturer code ZG-07-DS-DN
• With OEM self-levelling → manufacturer code ZG-20-DS-DN

Confirm your car’s rear suspension type (or send the registration) before you order.

Recommended spring rates for the UK DN kit on this platform are 7 kg/mm front / 6.5 kg/mm rear (custom rates available). The DN configuration is the bolt-on style (no separate front top mount; rubber / OEM-compatible rear arrangement) — choose DN if you want to avoid chassis modification. DA/DH pillowball options that may require cutting are available from BC separately.

If you want a more comfort-oriented daily setup, see our BR Series listing for the same V70 Y20 platform.

Key Features / Selling Points

• BC Racing DS Series — digressive valving for stronger low-speed body control
• Track-biased character vs BR, still usable on fast road when damping is backed off
• Two fitment options: with or without OEM rear self-levelling (ZG-20 vs ZG-07)
• Independent ride-height adjustment (threaded bottom mount)
• 30-way simultaneous rebound and compression adjustment
• Satin chrome finished damper body
• Recommended springs 7 / 6.5 kg/mm (custom rates available)
• Bearing-mounted upper spring platform; dust boots; tapered locking collar
• Rebuildable dampers; spare parts support
• 1-year manufacturer warranty (BC Racing UK)

Vehicle Fitment

• Volvo V70 Mk3 / Y20 FWD — 2007–2018 (per BC Racing UK)
• Related Y20 applications under the same kit family: Volvo S60 and Volvo V60 (07–18) — confirm exact match
• Select with or without OEM rear self-levelling

Important Fitment Restriction Order the correct self-levelling variant:

• ZG-07-DS-DN — without OEM self-levelling
• ZG-20-DS-DN — with OEM self-levelling

Listed by BC Racing UK for FWD Y20 V70. Do not assume AWD or XC70. This listing leads with the recommended DN bolt-on configuration. Alignment after fitment is mandatory. Inform your insurer.

Technical Specification

• Manufacturer: BC Racing
• Series: DS Series (digressive valving / track-biased)
• Chassis: Volvo Y20
• Recommended kit (no SL): ZG-07-DS-DN
• Recommended kit (with SL): ZG-20-DS-DN
• Coilover type: DN (OEM-style mounts; no chassis cutting)
• Default spring rates: 7 kg/mm front / 6.5 kg/mm rear
• Damping: 30-way combined rebound + compression
• Damper design: Monotube, digressive piston; satin chrome body
• Height adjustment: Threaded bottom mount (independent of preload)
• Warranty: 1 year manufacturer (BC Racing UK)
• Guide UK RRP (BC Racing UK): ~£1,188 incl. VAT (confirm at order)

Recommended For

• V70 Mk3 owners wanting digressive, track-leaning control
• Track-day / fast-road cars already on sticky tyres or with aero
• Buyers who specifically need DS rather than BR linear valving
• Anyone who must choose with / without self-levelling correctly at checkout

Installation Note Professional installation strongly recommended. Confirm self-levelling status first. Set height, settle the car, then align. Start damping mid-range; DS will feel firmer at low shaft speeds than BR — back damping off for road comfort if needed.
