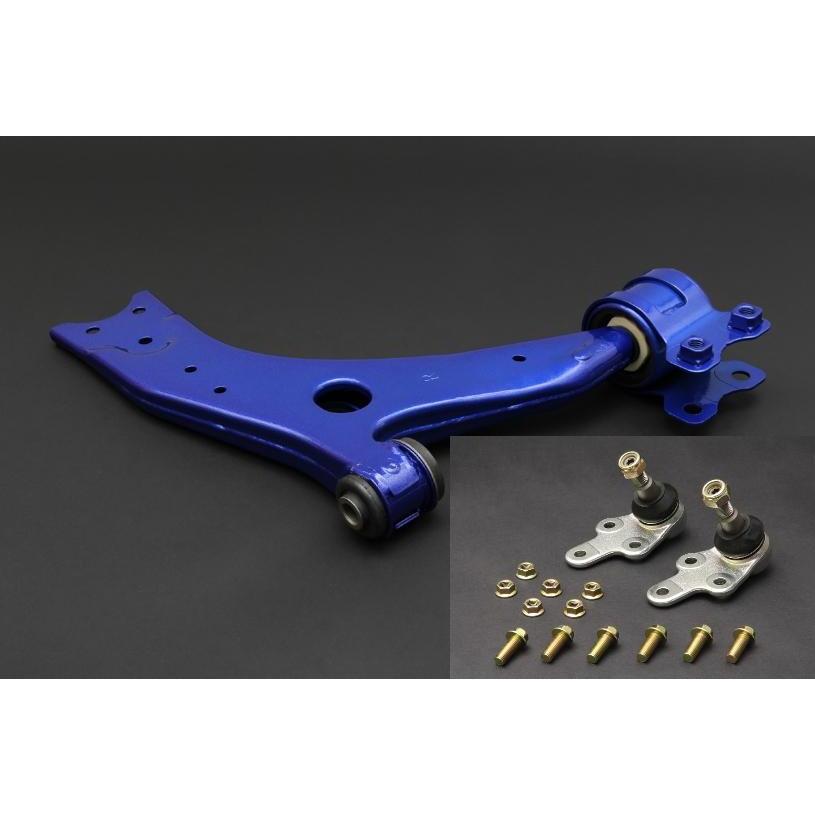

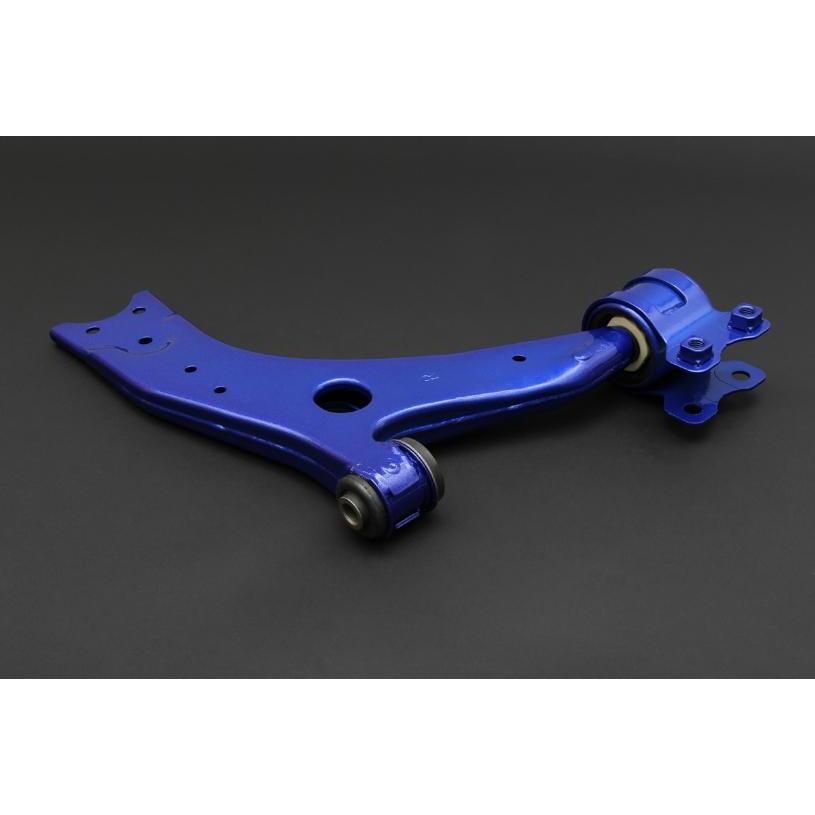

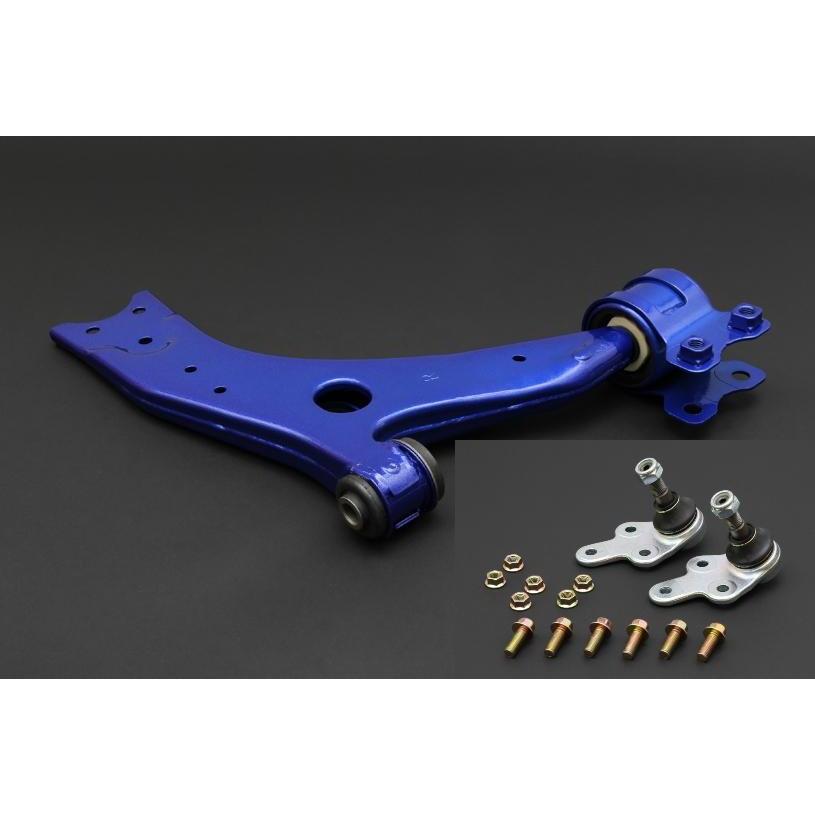

Uprated Lower Control Arm Wishbones

Why bother cutting out your old control arm bushings just to replace with polyurethane? With the Hardrace Wishbones, you can simply swap old for new! The Hardrace wishbone/control arms are manufactured from hardened steel and uses hardened rubber bushings. A good control arm is key to precise movement of the wheels on every corner.

• Anti-corrosion coating for extended control arm life
• Equipped with premium quality bushings
• Superior strength and durability
• OE direct replacement
• Dramatically improving handling performance

Fitment Notes: Hardened Rubber. Tie Rod Ends not included. Ball Joints Not Included as standard. Ball Joint size depends on chassis number. Check the last 6 digits on your VIN code, that will be the chassis number.

Volvo C30
VIN up to 0000261 = 18mm Ball joint needed
VIN from 0000261= 21mm Ball joint needed

Volvo S40
VIN up to 209290 = 18 mm Ball joint needed
VIN from 209291 = 21 mm Ball joint needed

Volvo V50
VIN up to 214682 = 18 mm Ball joint needed
VIN from 214683 = 21 mm Ball joint needed

Volvo C70
VIN up to 002027  = 18 mm Ball joint needed
VIN from 002027  = 21 mm Ball joint needed

Ford Focus ST Mk2
The taper diameter (at bottom of ball joint stud) changed from 18mm to 21mm for the Focus and C-Max in Sep/Oct 2006.

Length 56CM (21.9")
Width 39CM (15.4")
Height 16CM (6.3")
Actual Weight 9.26KG (20LB 7OZ)

M10 mounting bolts: 46Nm

Ball joint nut: 70Nm

Fits:
Volvo C30
Volvo C70
Volvo S40
Volvo V50
Ford Focus ST Mk2
