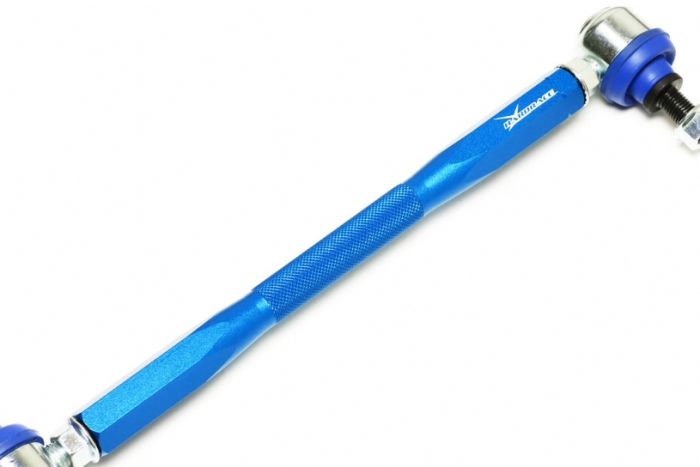

Hardrace Volvo Adjustable Drop Links – S60 V60 V70 V40

Correct anti-roll bar geometry on your lowered Volvo with the Hardrace Adjustable Stabiliser Links. Designed for selected Volvo S60, V60, V70, XC70, S80 and V40 models, these adjustable drop links allow the effective link length to be fine-tuned between 280mm and 319mm to suit changes in suspension ride height.

Lowering a Volvo with performance springs or coilovers changes the relationship between the suspension and anti-roll bar. Retaining fixed-length standard drop links can place unnecessary preload into the anti-roll bar when the car is sitting at its new ride height.

Adjustable drop links allow the anti-roll bar to be correctly positioned and unnecessary preload reduced, helping the suspension and anti-roll bar work as intended.

Hardrace manufactures the links from high-tensile steel with tight ball joints and protective rubber boots for increased strength, rigidity and service life. The joints also use a self-lubricating plastic bearing design, providing smooth operation with a precise connection between the suspension and anti-roll bar.

For lowered road cars, fast-road builds and Volvos running height-adjustable coilovers, these are a worthwhile supporting suspension upgrade. They are especially useful where ride height has been changed significantly from factory specification and the standard fixed-length links no longer place the anti-roll bar in its ideal position.

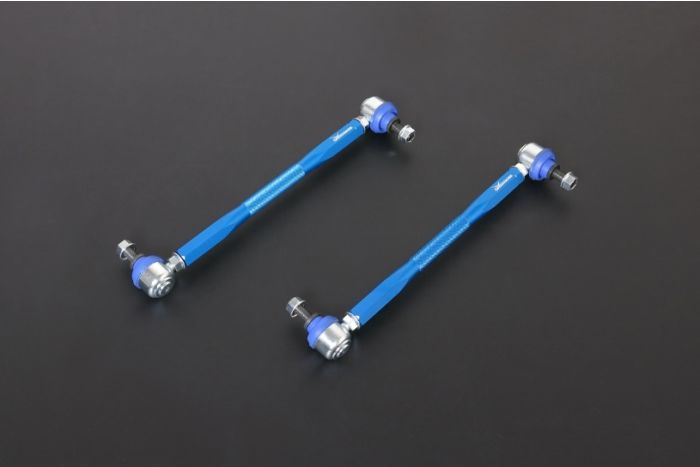

The kit is supplied as a matched pair with M10 ball studs and an adjustment range of 280–319mm.

Key Features

• 280–319mm adjustable length – fine-tune the drop-link length to suit your suspension setup
• Ideal for lowered Volvos – particularly useful with coilovers and performance lowering springs
• Helps correct anti-roll bar geometry – allows the bar to operate correctly after ride-height changes
• Helps reduce anti-roll bar preload – useful when setting up height-adjustable suspension
• High-tensile steel construction – designed for strength and long-term durability
• Precision ball joints – provides a tight, direct connection between the suspension and anti-roll bar
• Self-lubricating bearing design – promotes smooth movement and consistent operation
• Protective rubber joint boots – help protect the joints from dirt and road contamination
• M10 ball studs – correct specification for the listed applications
• Supplied as a pair – complete two-link set

Vehicle Fitment

Volvo S60 II

• 2010–2018
• Volvo P3 platform

Volvo V60

• 2010–2018
• Volvo P3 platform

Volvo V70 III

• 2007–2016
• Volvo P3 platform

Volvo XC70 III

• 2007–2016
• Volvo P3 platform

Volvo S80 II

• 2007–2016
• Volvo P3 platform

Volvo V40

• 2013–2019
• Selected compatible models

Hardrace application data lists the above Volvo models for this adjustable stabiliser-link specification.

Technical Specification:

• Adjustment range: 280–319mm
• Ball stud: M10
• Construction: High-tensile steel
• Quantity: 2 links per set
• Joint type: Ball joint with self-lubricating bearing
• Adjustable: Yes

Recommended For:

• Lowered Volvos
• Coilover-equipped cars
• Performance lowering springs
• Fast-road suspension setups
• Cars with uprated anti-roll bars
• Vehicles requiring anti-roll bar preload correction

Installation Note: The correct link length should be set with the vehicle suspension at its normal loaded ride height. Adjustable links should not simply be matched to the original links when the vehicle has been significantly lowered.
